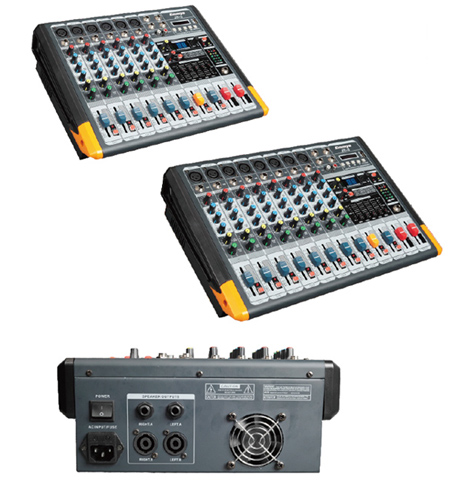

Mixer
| Mic input | electronically balanced, discrete input configuration | ||
|---|---|---|---|
| Bandwidth | 10 Hz to 60kHz±3dB | ||
| Distortion(THD&N) | 0.01% at 4dBu, 1kHz, Bandwidth 80kHz | ||
| Mic E.I.N(22 Hz-22 kHz) | -129dBu, 150 Ohm source | ||
| -117dBqp, 150 Ohm source | |||
| -132dBqp, input shorted | |||
| -122dBqp, input shorted | |||
| TRIM range | +10dB to +60dB | ||
| Line Input | electronically balanced | ||
| Bandwitdth | 10 Hz to 60kHz±3dB | ||
| Distortion(THD&N) | 0.01% at 4 dBu, 1kHz, Bandwidth 80 kHz | ||
| Line level range | +10dBu to -40dBu | ||
| Hi Shelving | 12kHz+/- 15dB | ||
| Mid Range | 2.5kHz+/- 15dB | ||
| Lo Shelving | 80Hz+/- 15dB | ||
| Max Output | +22 dBu balanced | ||
| Aux Send Max Out | +22 dBu unbalanced | ||
| Control Room Out | +22 dBu unbalanced | ||
| Signal-To-Noise Ratio | 112dB,all channels at Unity Gain | ||
| Mains Voltages | USA/Canada -120V AC, 60 Hz | ||
| U.K./Australia -240V AC, 50 Hz | |||
| China -220V AC, 50 Hz | |||
| Power | 4CH | 6CH | 8CH |
| 2*100W(4 Ω ) | 2*150W(4 Ω ) | 2*150W(4 Ω ) | |
