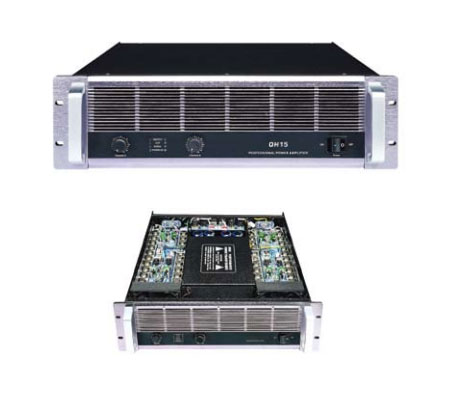

Amplifier
FEATURES:
QH13, 15 high-power amplifier using a sealed tube to expand current gold output and audio tonic level components,
strong power, wide dynamic, sound fine, good texture, deep and powerful low-frequency, electromagnetic compatibility,
vibration and drop, full-featured intelligent protection . Adaptation to a variety of high-end projects.
| MODEL | QH-15 |
|---|---|
| Output power | 1500Wx2/8Ω |
| Output power | 2400Wx2/4Ω |
| Inputs | 0dB(0.775Vrms)/1.4V/26dB |
| Frequency response | 20-20000Hz(±0.3dB) |
| Slew rate | ≥30V/μs |
| Damping factor | ≥600:1 |
| Crosstalk | >70dB@1KHz |
| S/N | >100dB |
| THD+N | <0.1%, 1KHz |
| IMD | <0.2%8Ω,1KHz@1W |
| Dimensions(W×H×D) | 483×132×487mm |
