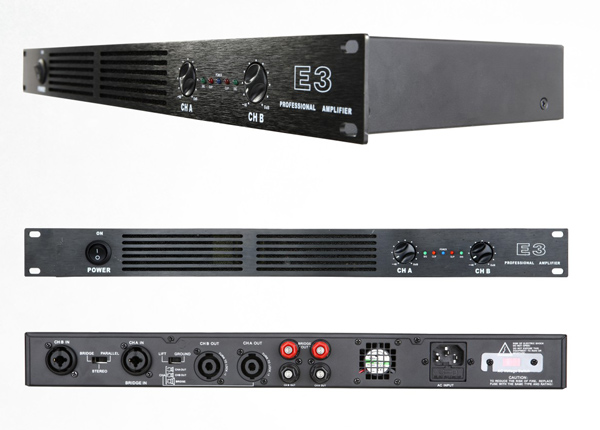

Amplifier
| Model | E3 |
|---|---|
| @4Ω output power | 2x500W |
| @8Ω output power | 2x300W |
| @8Ω Bridge output power | 1000W |
| Frequency range | 20Hz-20KHz(+/-0.5dB) |
| THD+N | ≦0.05% |
| Damping factor | 300 |
| S/N(A weighted) | 100dB |
| Slew rate | 20V/us |
| Input Impedance | 10k ΩU nbalanced, 20K Ωb alanced |
| Cooling type | Low Noise fan |
| Output circuitry | Class D |
| Protection | Short circuit,DC, Temperature,overloading |
| Connection | Input: COMBO(XLR,6.3mm Jack), Output: Speakon compatible, binding post |
| Indicators | Power ,Signal ,Clip,Protect,Mode(bridge/parallel) |
| Controls | ON/OFF,VOLUME,MODE(BRIDGE/PARALLEL/STEREO), GROUND LIFT |
| Power supply | 115V/230V(Voltage select) |
| Dimensions(WxDxH) | 482x180x44mm |
| Weight | 2.6kg |
