Mixer

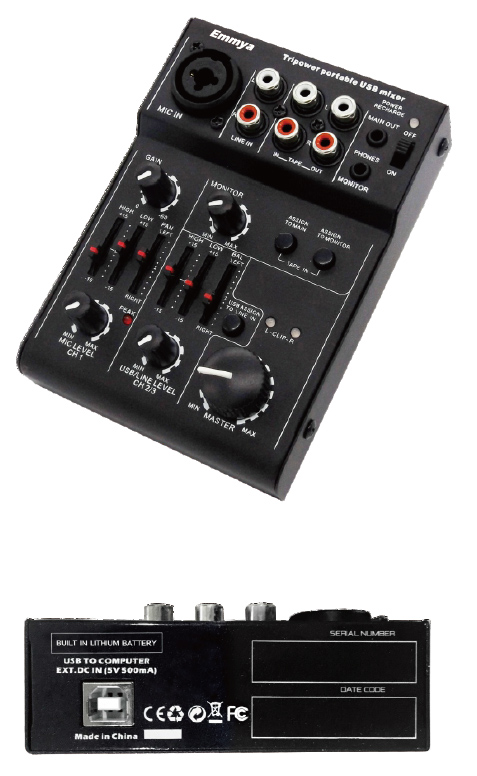

3 CHANNEL USB MIXER WITH TRIPOWER
*USB Powered No External Power Supply when connect with computer
*Intergrated USB Audio Interface
*1 Mono Channel with Gain Control,2 Way Equalizer and Pan Pot,Peak LED
*1 Stereo Channel with Level Control,2 Way Equalizer and Balance Control
*Ultra-Low Noise Discrete Mic Preamps with +18V Phantom Power
*Stereo 1/8 “ (3.5mm) Jack Main and Monitor Outputs
*Stereo RCA Jack for Tape Record/Play Back
*Intergrated USB Audio Interface
*1 Mono Channel with Gain Control,2 Way Equalizer and Pan Pot,Peak LED
*1 Stereo Channel with Level Control,2 Way Equalizer and Balance Control
*Ultra-Low Noise Discrete Mic Preamps with +18V Phantom Power
*Stereo 1/8 “ (3.5mm) Jack Main and Monitor Outputs
*Stereo RCA Jack for Tape Record/Play Back
| MONO INPUT CHANNEL | |
|---|---|
| Input | Electronically Balanced, Discrete Input Configuration |
| Frequency Response | 15Hz to 25KHz, ±3dB |
| Distortion (THD&N) | 0.05% at + 4dB, 1KHz |
| Gain Range | 0 dB to 40 dB |
| Equivalent Input Level | -120 dBu Typical (XLR Balanced, Max Gain) |
| STEREO INPUT CHANNELS | |
| Line Input | Balanced |
| Frequency Response | 15Hz to 25KHz, ±3dB |
| Distortion (THD&N) | 0.05% at + 4dB, 1KHz |
| IMPEDANCES | |
| Microphone Inputs | 1.2KΩ Ω |
| Line Input | 33KΩΩ |
| Tape Input | 22KΩΩ |
| Main Output | 380ΩΩ |
| Monitor Output | 100Ω Ω |
| Tape Output | 1KΩΩ |
| EQUALIZATION | |
| Hi Shelving | ±15dB/12KHz |
| Low Shelving | ±15dB/80Hz |
| MAXIMUM LEVELS | |
| Mic In | +12dBu |
| Line In | +14dBu |
| Tape In | +18dBu |
| Main Output | 5.8 V Max |
| Monitor/Phones | 5V Max |
| Power supply | USB Powered 5Vdc |
| External Adapter 5Vdc | |
| Phantom Power +18V | |
| Built in Li-ion Battery 3.7V | |
| Power Consumption | 0.45 Watt Typical 0.8 Watt with Full Headphone Output |
| Li-ion Battery | Recharge Time less Than 3 hours |
| Operation Time More than 4 hours | |
| USB Section | Windows 2000/XP , Vista ,Windows 7 and Mac OS X Compliant, USB 2.0 Full |
| Speed Full Compliant, 16 Bit 48KHz | |
| ADC/DCA USB Input & Output | |
| Dimension | 100*135*35mm (W*D*H) |
| Net Weight | 480g |
